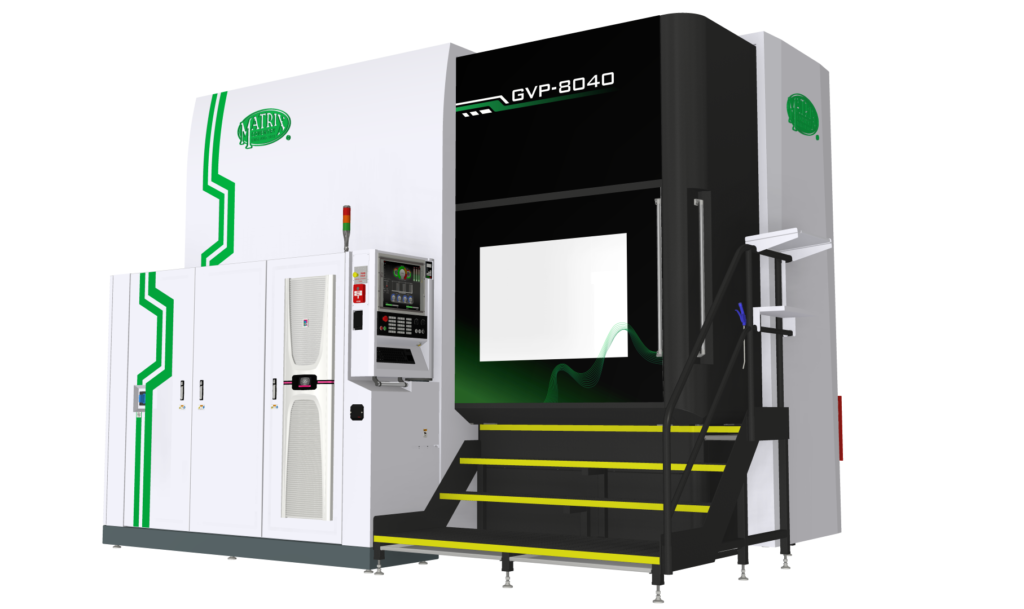

Gear:

Max. Workpiece Outside Diameter

800mm

Tooth Range

9 ~ 999

Min. Workpiece Root Diameter

50mm

Module

M2.0 - M25

Max. Tooth Depth

45mm

Helix Angle Range

±45°

Hob Cutter:

Min. Root Diameter/ Max. Workpiece O.D.

50mm ~ 350mm

Max. Flute Depth

50mm

Flute Range

1 ~ 99

Flute Helix Angle Range

±40°

Mechanical Specifications:

Max. Grinding Slide Travel (Y Axis)

400(450)mm

Max. Workpiece Slide Travel (Z Axis)

500mm

Tailstock Center Height Above Rotary Table

480mm ~ 1180mm

Table Diameter

740mm

Max. Table Load (Workpiece With Fixture)

2500Kg

Grinding Wheel Specifications:

Min. Dressable Diameter of the Grinding Wheel. Max. Grinding Wheel Diameter

220mm / 405mm

Max. Grinding Wheel Thickness

80mm

Max. Grinding Spindle Speed

6000rpm

Drive Power of Grinding Spindle

29.5kW

Electrical System:

Voltage

3Ø 220V

Current Requirement

80 Amp

Ambient Temperature

20°C ~ 26°C

Max. Load of Machine

35kVA

CNC Controller:

Fanuc

Dimension & Weight:

Space Requirement

L 4800 x W 5775 x H 3650mm

The specifications are subject to the contract, as well as new technology and industrial advancements available.
